inotech 2023/11/11 01:31

Hello,

Is a schematic available for this unit ?

I need to identify the surface mount component that is in series with port 1 SMA (port closest to power slide switch)
centre pin. Component is located on the underside of the board under the metal can shield.

I may have damaged this component during the process of replacing the SMA connector.

No guessing please....

Thanks & Regards,
Oli.

nanov2support 2023/11/11 03:01

Hi, it should be a 10uF 10V ceramic capacitor, to be sure you can send me a photo of the area and I can check.
Thanks

inotech 2023/11/14 13:41

Hi,

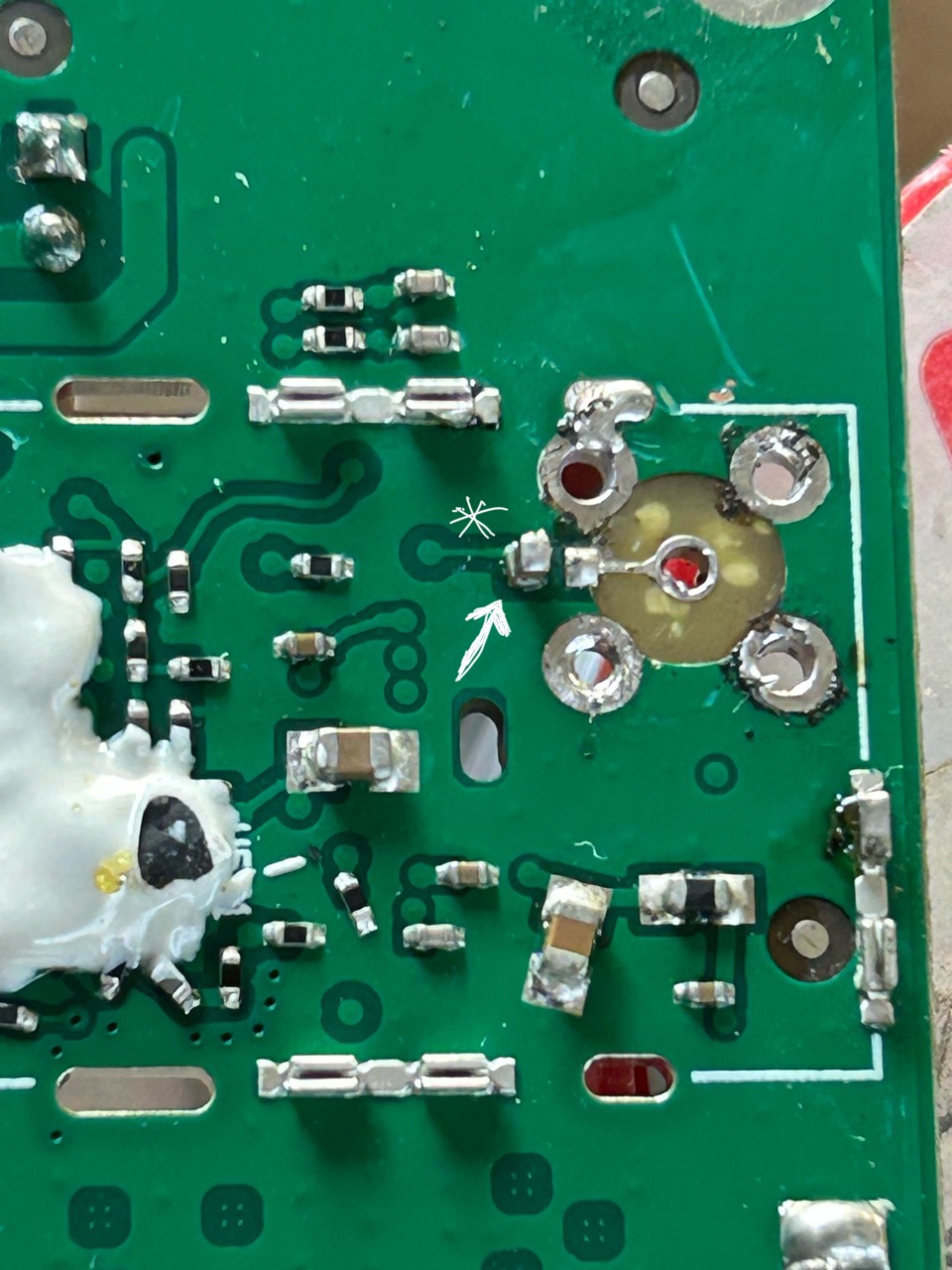

Attached picture showing 'TOMBSTONE' component, this happened during the process of de-soldering Port 1 (CH0) SMA, the component has been placed back onto its pads, however i need to measure that its value is correct.

Could you please confirm the PCB through hole diameter for the SMA centre pin via.

Thanks & Regards,
Oli.

V2 _4pro_1.jpg

nanov2support 2023/11/14 18:32

Hi, the component is a 10uF 10V capacitor, and the via size for the SMA center pin is 1.2mm.
Thanks

inotech 2023/11/15 02:30

Thank you.

Excellent support.

inotech 2023/11/25 21:49

Hello,

Nano VNA V2 Plus4 Pro

Please provide part number for a replacement slide power switch,
my switch has become intermittent. Switch labelled S2 on PCB.

Thanks
Oli.

nanov2support 2023/11/26 08:34

Hi, the part number is SK-12D02VG4,
https://www.lcsc.com/product-detail/Slide-Switches_SOFNG-SK-12D02VG4_C239529.html
Thanks

inotech 2023/11/27 12:53

Once again,

Great support..

Thanks & Regards,
Oli.
