vna v2 ... or quite similar ... but improved design


Siegfried Jackstien 2020/07/29 08:00

found in the net
http://www.yl3akb.lv/content/vna_v2/vna_v2.php
with a different clock it goes up to 6 gig
and it seems as this is a real 2 port and not a 1 plus a half port design
greetz sigi dg9bfc

aleks07111971 2020/07/29 08:31

https://www.eurovna.net/en/eurovna/software/

aleks07111971 2020/07/29 10:29

Kroks(RU)
1000 $

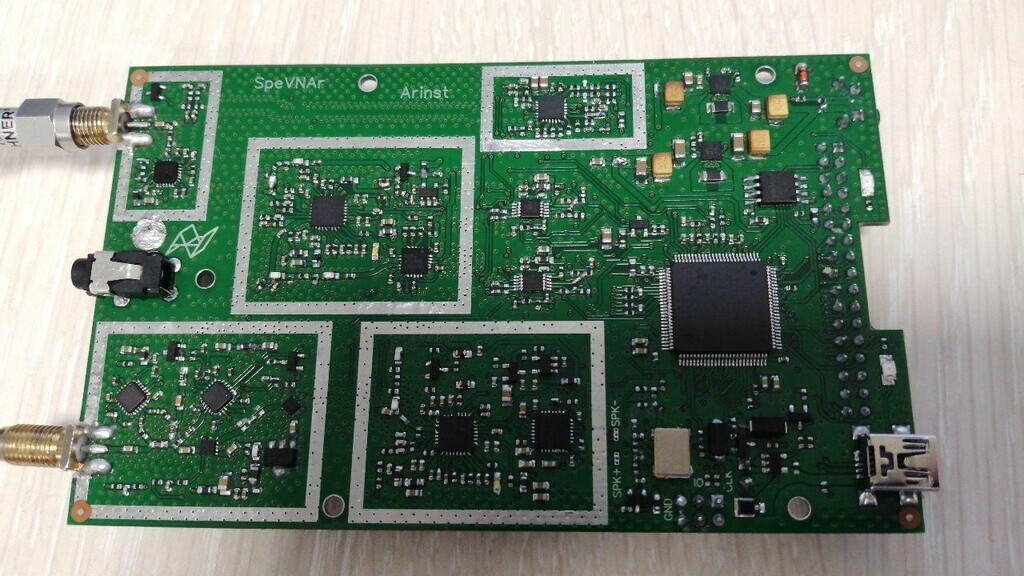

dekagon 2020/07/30 14:15

@aleks
is this a 2-port vna from Arinst?
They did not have a 2-port vna till now...

Chris
---
'Everything should be made as simple as possible, but not simpler.' -- Albert Einstein

Am 29.07.2020 um 19:29 schrieb aleks07111971@yandex.ru:
> Kroks(RU)
> 1000 $
>
>
>



--
Chris
--
I am not responsible for typos... they always respond to the bad robot...

aleks07111971 2020/07/30 05:32

Yes.

dekagon 2020/07/30 14:48

Do you have some specs (in english if available please).
The website from arinst does not help...

Chris

> Am 30.07.2020 um 14:32 schrieb aleks07111971@yandex.ru:
>
> Yes.
>
>
>


--
Chris
--
I am not responsible for typos... they always respond to the bad robot...

aleks07111971 2020/07/30 06:18

Portable vector and spectral two-port analyzer 1-6200 MHz.
Large touchscreen display and no buttons, except for one - power.
So far, everything I know about this device.

dekagon 2020/07/30 16:33

Thank you.
Any infos when they will sell it?


Chris

> Am 30.07.2020 um 15:19 schrieb aleks07111971@yandex.ru:
>
> Portable vector and spectral two-port analyzer 1-6200 MHz.
> Large touchscreen display and no buttons, except for one - power.
> So far, everything I know about this device.
>
>
>


--
Chris
--
I am not responsible for typos... they always respond to the bad robot...

aleks07111971 2020/07/30 07:47

There will be 2 ports.

1 port vector measurement S11, calibrated generator with level control -40 ... 0 dBm
2 port vector measurement S21, calibrated receiver with spectrum analysis function -120 ... + 10 dBm

The planned isolation between ports inside the device is not worse than 60 dB, it may be possible to bring up to 80 dB at frequencies below 3 GHz

aleks07111971 2020/07/30 07:52

I'll try to ask the developer.

dekagon 2020/07/30 17:17

Sounds interesting...
Thank you :)

Chris
