What and where are mag(s21) and mag(s11)
Leif M 2025/03/18 12:10
I just updated the firmware to nanorfe-20250121-v2plus45.bin and decided to try the tests in https://nanorfe.com/nanovna-v2.html Measurement comparisons
I think S11 channel 0 is the return loss, but how can I get mag(s21). Where it is in menus. Is it measured with nothing connected to the VNA.
The NanoVna uses different names for the channels. Just a comment.
Leif M 2025/03/19 14:03
Probably a better question is, how can I repeat the measurements of this pictures
István 2025/03/20 10:21
Dear Leif M,
first two pics: NanoVna-QT software:
https://nanorfe.com/nanovna-v2-software.html

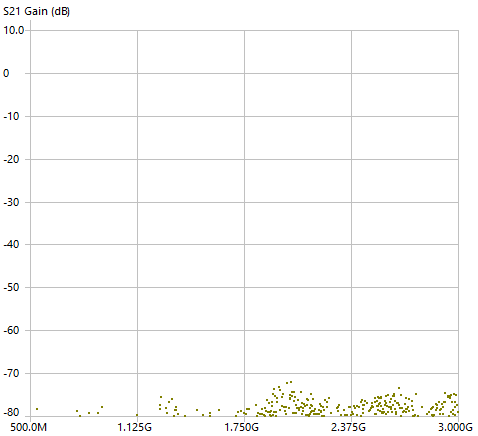

last one: NanoVna-Saver - maybe 1023 datapoints; - here is mine plus4 in same scale:
https://github.com/NanoVNA-Saver/nanovna-saver/releases
on the 3. pic looks to me some kind of , the H or H4 not go up to 3GHz.
You set the start, and stop frequency; first two pics: start from 200MHz 3. starts from 10 MHz last one; from 500MHz (end fq: 3GHz)
- the input noise measurements (dynamic); always with 50 Ohm termination; connect 50 Ohm load to the input (better if You connect both connector)
Istvan
Leif M 2025/03/21 13:49
Thank you all. My problem here is that Mag(s11) and Mag(s21) are not written anywhere on the NanoVNA V2 Plus4 screen. And I don't remember s-parameters too well.
István 2025/03/22 07:30
This will helps You:
https://groups.io/g/NanoVNAV2/files/The%20Missing%20Manual.pdf
Istvan
Leif M 2025/03/25 06:51
Thanks I found one which talked about SC cards and such. Too many version.
