Hi y'all,

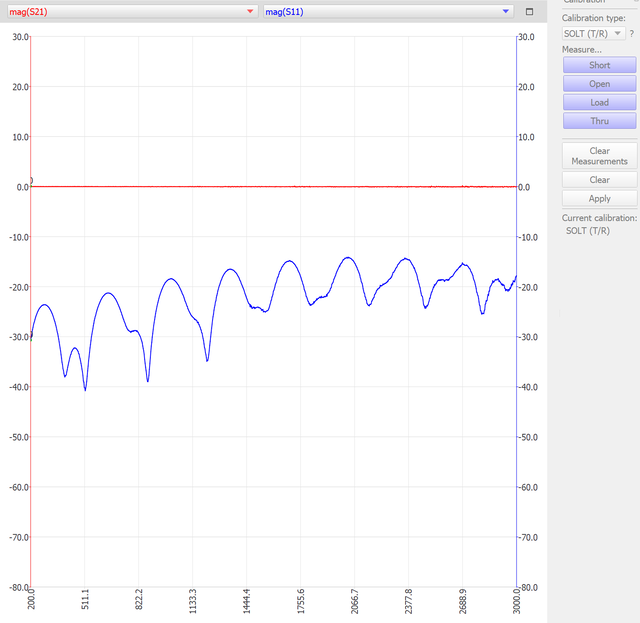

I just recently got a NanoVNA V2.2 in an effort to get more into measuring RF circuitry. I strongly believe it's a a clone (I'm sorry, but I only discovered afterwards and a genuine V2plus4 was sadly out of my price range for just starting out...), so I'm no trying to measure whether it's a "good or bad" clone with worse parts (out of spec for some frequencies). Doing some research, I discovered that especially the return loss of Port 2 is usually worse on such clones, which I found was quite interesting since my own measured return loss seemed kinda strange to me (picture from VNA-QT below, calibrated with the included standards and with a through cable from Port 1 to Port 2); especially when comparing to other pictures posted here.
So my question: is seen "ringing" (I don't know how to call it) normal? The return loss seems to be in spec for 3 GHz with about 16dB peak, but not for 1.5GHz with only about peak 15dB).

My version has a metal enclosure so that could be a part of the problem.
Same with the cables, at the moment (I will get better ones) I am using the cables provided with the kit.

Any help would be greatly appreciated.
Also are there any other measurements I can do, to tell exactly if my unit is one of the worse ones (no, I don't have a known-good VNA to compare it against)?

Sorry if my questions are dumb or anything, I'm still quite new to this.

Best regards, l0rdl4nx

The "ringing" is probably due to the test cable between the ports not being exactly 50 ohms.
Try calibrating at the end of the cable, or try another different length or brand of cable to see if the ringing changes.
--John Gord
