I wanna measure chokes that I've build, i know that it should use 2 port calibration, but I have problem to find soultion how to build proper probes for such measurement.
Thanks for any information
Beware of cheap underperforming clones
As of 2022 there are many badly performing clones on the market. V2/3GHz NanoVNA uses parts like ADF4350 and AD8342 which are costly and clones have been cutting costs by using salvaged or reject parts.
See official store and look for V2 Plus4/V2 Plus4 Pro versions only to avoid getting a bad clone. We have stopped selling V2.2 versions since October 2020, so all V2 hardware that are not Plus or Plus4 are not made by us and we can not guarantee performance.
Click here to join and see most recent posts.

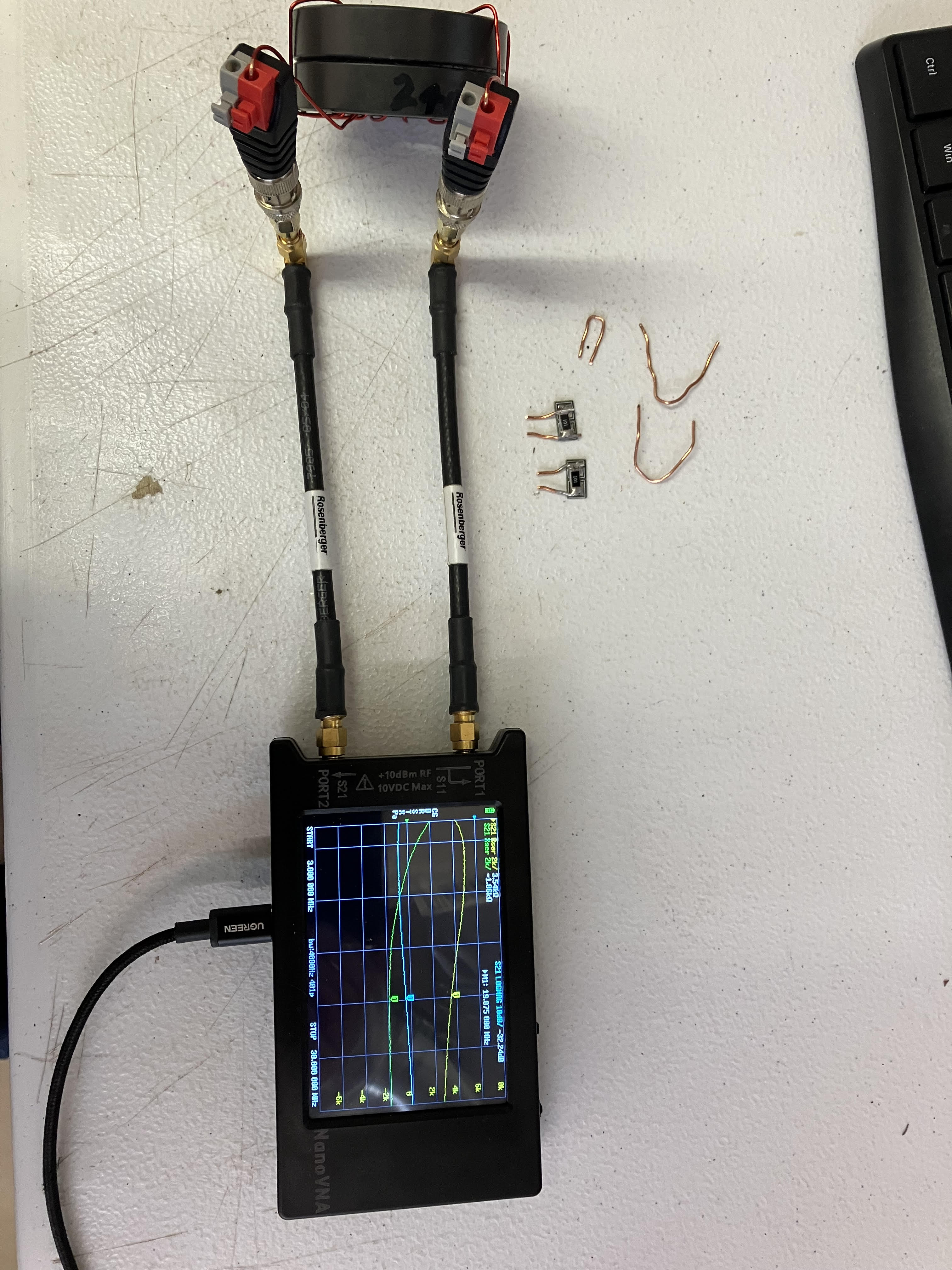

Attached is a photo of a setup I use to measure common mode chokes for HF.
This would not work for GHz frequencies. The key is calibration. I use
two SMD 100 ohm resistors soldered in parallel as shown for the load (you
need two of these) and isolation calibrations and the short copper wires
for the short and through calibrations. Push the wires into the fixtures
as far as you can to reduce the wire inductances messing up your
As you can see I was testing a two core FT-240-43 ferrite wound with 9
turns of magnet wire. This is not a final choke but a simulation. The
display on the NanoVNA Saver software looks much better. I picked up the
very high quality Rosenberger coax leads from a hamfest meeting a few weeks
ago for $1.25 each.
On Tue, Aug 9, 2022 at 12:22 PM DawidB <email@example.com> wrote:
> I wanna measure chokes that I've build, i know that it should use 2 port
> calibration, but I have problem to find soultion how to build proper probes
> for such measurement.
> Thanks for any information
To reply to this topic, join https://groups.io/g/NanoVNAV2
