Looking for 100 Hz frequency res - buy or fork?


foanaumann 2022/12/12 09:46

Hey all,
I'm looking for a highly portable solution for measuring some resonant LF antennae in the field, checking for tuning drift. From what I can see the V2 has a 10kHz IFBW and the V3 can go down to 0.8kHz. Are measurements with a frequency res of ~100Hz plausible with either, is there a known NanoVNA based design that can do high res LF measurements, or do I need to explore a hardware fork for that?
Thanks

DaveWJ 2022/12/12 12:16

Good Day,

I'm not anywhere close to an expert at this, but I believe the adjustable IFBW requires an additional hardware filter in the signal path.

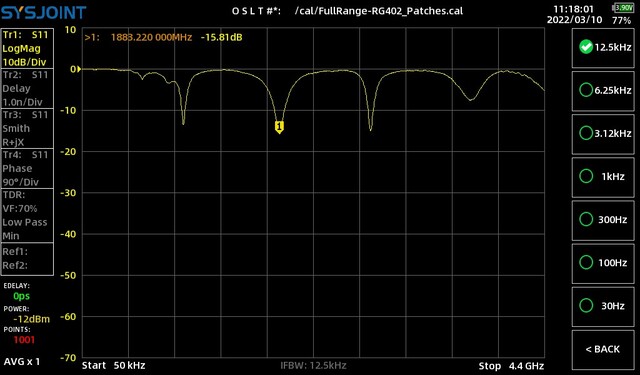

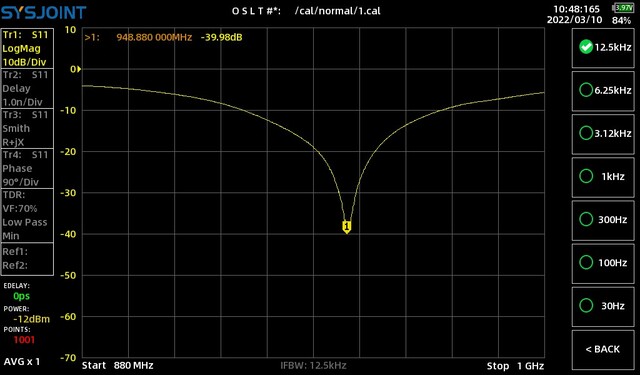

One possible option for you, the ($300) SYSJOINT SV4401A (I have this unit). It allows adjustable IFBW down to 30Hz & 50kHz-4.4Ghz coverage. Here is a screenshot:

Using modes below 1kHz is incredibly slow. At full range, 30Hz IFBW, 1001pts, measurement takes around 2 minutes.

I also can't speak to the accuracy at small IFBW, I have no DUTs to really push it. If you have a suggestion for a test I can do, I'm open to it.

This model has a larger capacitative touchscreen, N connectors, is heavier, and less portable than the regular nanoVNAs, but it might be OK for your use. It's about the size of a 9" tablet, 1.25" thick and about 2 lbs.

People around here have had hit & miss with SYSJOINT products. Personally, I've hit software bugs, but the hardware has been OK. Caveat Emptor though.

Dave

Mike C. 2022/12/15 21:18

An HP3561a might meet your needs. Would 640uHz RBW meet your needs? If
so you can pick up an HP3561a at a reasonable price if you look long
enough. I have one but NOT willing to part with it. Hope that helps.
Here's a link to the page explaining it:

https://www.google.com/url?sa=t&rct=j&q=&esrc=s&source=web&cd=&cad=rja&uact=8&ved=2ahUKEwjp0Y-miP37AhWqSzABHbVgAeEQFnoECBEQAQ&url=https%3A%2F%2Faccusrc.com%2Fuploads%2Fdatasheets%2F5350_3561a.pdf&usg=AOvVaw25-yl4b1fhZ8Q6dIBCNLTq

Mike C. Sand Mtn GA

On 12/12/2022 3:16 PM, DaveWJ wrote:

Mark Libner 2023/01/04 12:38

I purchased a Plus 4 Pro after looking at a number of options. I do a lot of crystal filter work and 800 Hz is still a limitation when working with narrow filters - 300 and 600 Hz. At $400 the Plus 4 Pro is not cheap but does offer some really good performance over the less expensive units. Especially the time between calibrations. That said, I hope in the future, the design team updates the firmware to allow us to go to 100 or even 10 Hz bandwidths. I fully understand that the sweep times will get very long but that is the trade off.
