Antenna test jig AKA bulletproofing your nanoVNA

Anne Ranch 2022/06/13 13:00

Sorry for the size...

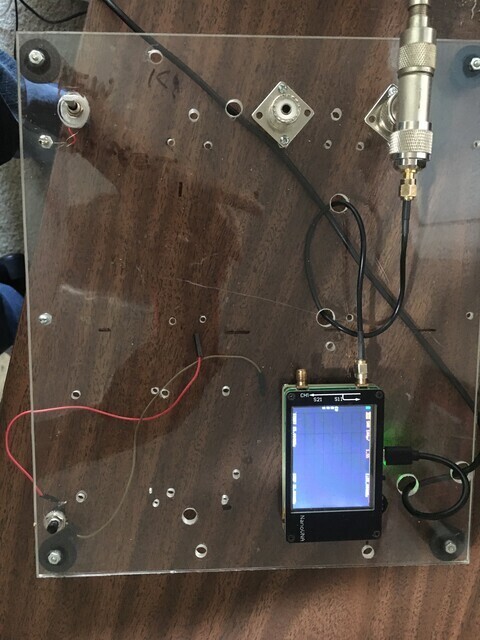

Designed primarily to test antennas and protect SMA connectors and to recycle "stuff"...
The unused connector , not yet wired, plus the 3 way switch ( short open load ) - to simplify "calibration "
The "T" and adapters holds both - the antenna coax plus nanoVNA connection...

PS Minor impedance mismatches are irrelevant - for me..
